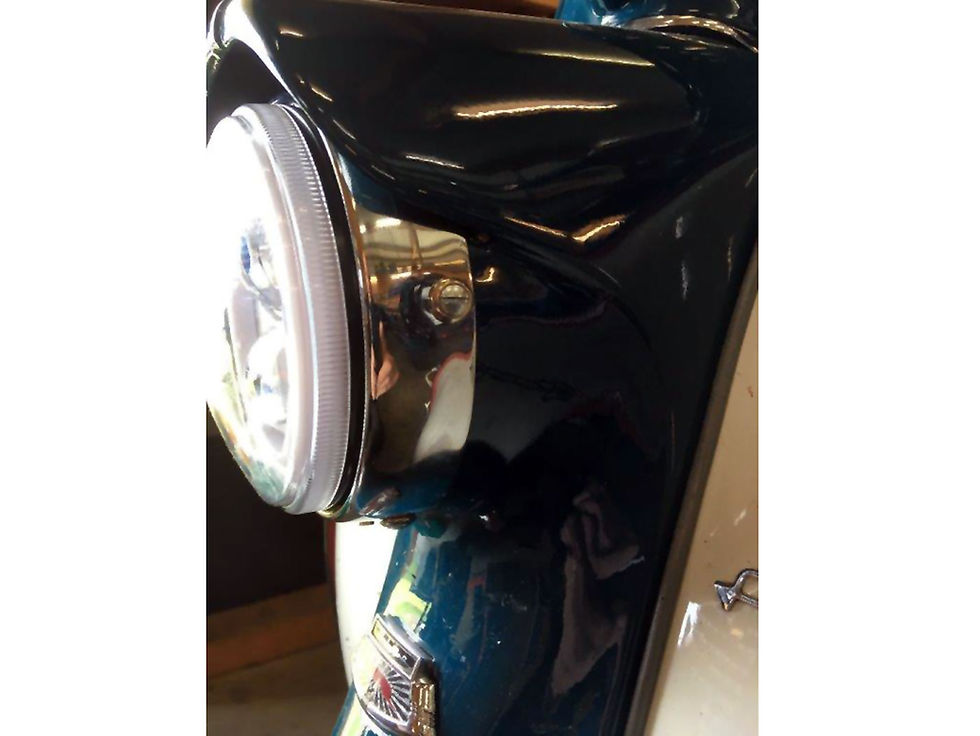

LED headlamp with E9 marking (road approval) and high-intensity main/dipped beam. Additional feature is a separately switchable position light. With a diameter of 120mm it fits perfectly into the lamp bezel of the Lambretta LI/TV (Series 1-3) models.
ADVANTAGE LED
The limit with conventional Bilux bulbs on most scooters is a headlight bulb with 45/45 W. More do not give the usually 80 W to max. 120 W performing ignitions. The luminosity measured in lumens is less than 400.
The LED headlight has a luminosity three times as high (1200 lumens). The power consumption is only 20 W. This corresponds to the luminous efficiency of a conventional 100 watt spotlight.
This means that a considerably better illumination can be achieved with a given generator/power supply. In addition, more capacity remains for other consumers.
voltage: 12 Volt DC (direct current)
cable colours:
Red= high beam
Black= ground
White= low beam
green = position light (ring)
br /> COMPLETION
Moto Nostra LED-Headlamp Ø 120mm with E-marking
holder ring incl. Mounting material (made by jockeys)
4x crimp connector
cable sheath
2x cable tie

PLEASE NOTE
This LED light works exclusively with direct current, it requires a battery or another equivalent power source with 12V DC. Operation with an alternating current voltage source will lead to an immediate defect.
